4.8 Wireframes

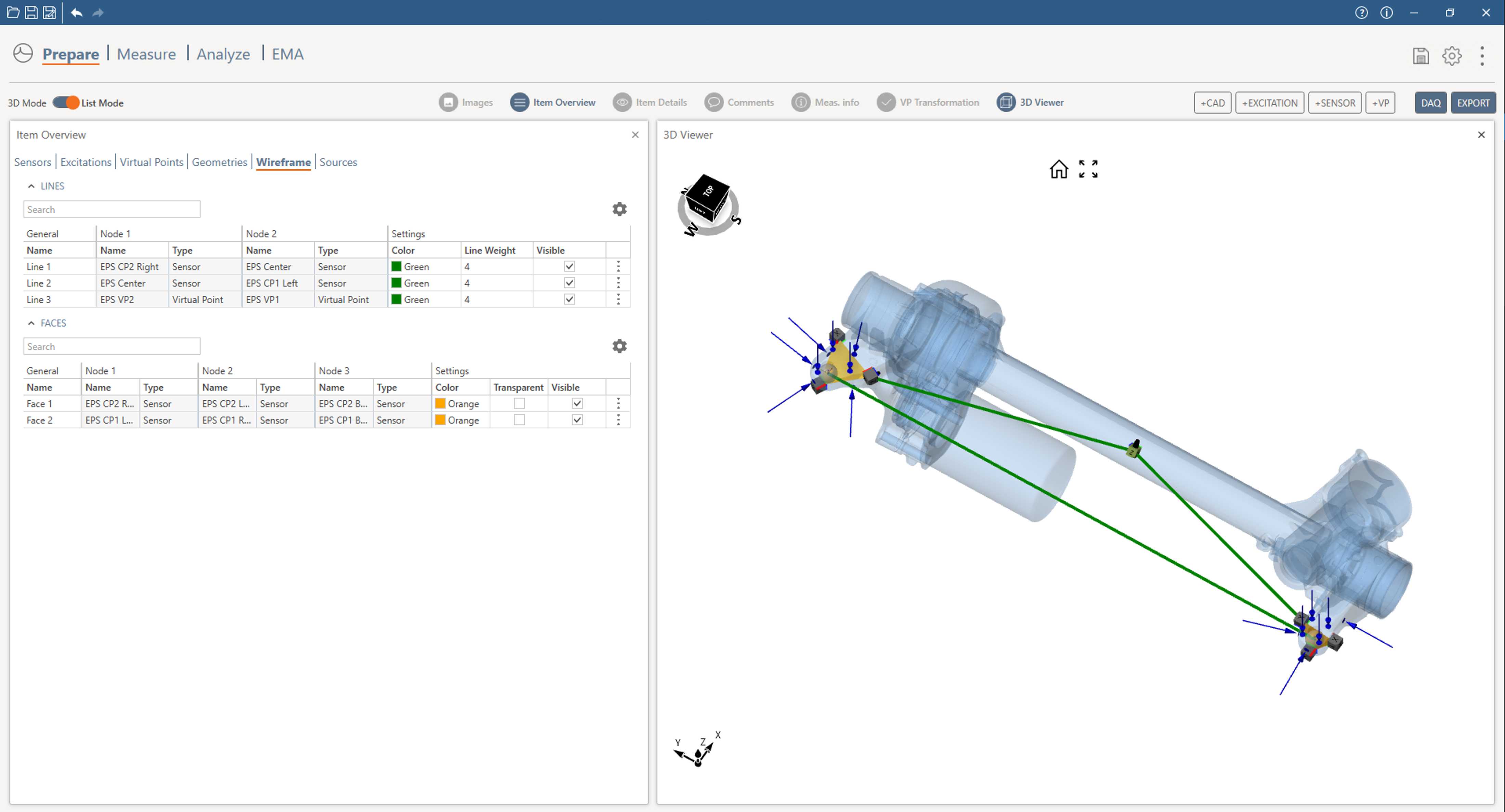

In DIRAC, you can create lines and faces between sensors and/or Virtual Points for better visualization. You add and personalize lines and faces in the Prepare Module.

Creating lines

You can create lines between sensors and Virtual Points, in the 3D Viewer in Prepare.

To create lines, complete the next steps:

1. Select the sensors or Virtual Points you want to connect.
2. Press L.

Creating faces

You can create faces between sensors and Virtual Points, in the 3D Viewer in Prepare.

To create faces, complete the next steps:

1. Select 3 sensors or Virtual Points you want to connect.
2. Press F.
